3 Inches Kiosks Panel Printer Mechanism ATM Coupon Self Service 203 Dpi 8 Dots /Mm

Name: 3 Inches Kiosks Panel Printer Mechanism ATM Coupon Self Service 203 Dpi 8 Dots Mm
Brand: TOUSEI
Price: 1 USD

Buy cheap 3 Inches Kiosks Panel Printer Mechanism ATM Coupon Self Service 203 Dpi 8 Dots /Mm product

Brand Name : TOUSEI

Model Number : T380

Certification : CE,FCC,ROHS

Place of Origin : CHINA

MOQ : 1pc

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PAYPAL

Supply Ability : 10000PCS/MONTH

Delivery Time : 5-8 work days

Packaging Details : carton

Printing method : Direct thermal line printing

Characters per line : 64cpl(max)

Paper width : 80mm

Printing width : 72mm

Resolution : 203 dpi, 8 dots/mm

Paper roll : 40mm diameter

Barcode : 1- dimension:Code128, EAN 128, Code39, I2/5, Code93, UPC, EAN, KAN, JAN, CODABAR 2- dimension:PDF417, QR Code, DATA Matrix

Driver : Microsoft Windows XP / VISTA / 7 , Windows CE, Linux, Android OS driver compatible

interface : UART(RS-232C or TTL)

Input : 9v, 12-24v

Contact Now

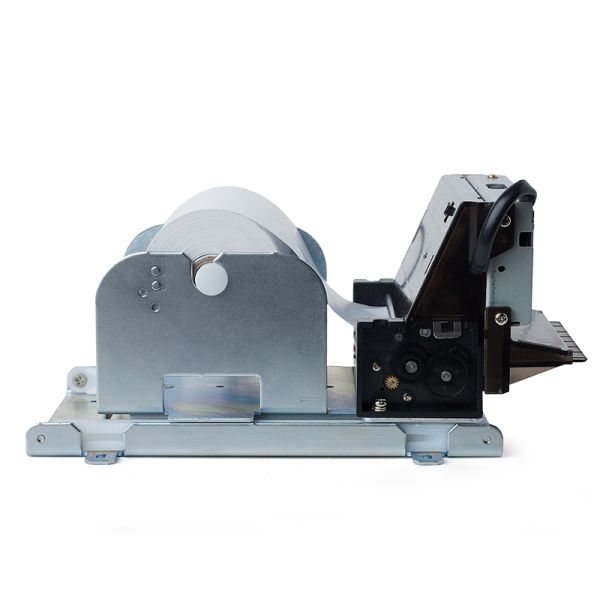

2, 3INCH KIOSK PRINTER

T280/380

Features

ㆍUltra small size rack mount printer.

ㆍVery silent printing thru direct thermal printing method

ㆍHigh speed(200mm/sec)

ㆍUART(RS-232C) , USB interface.

ㆍAuto cutting.

ㆍSupport text and graphic printing.

ㆍSupport bit-image (logo) download.

ㆍEasier paper loading by CLAMSHELL design.

ㆍEasier maintenance with self-diagnostics.

Specification

Item	Specification
Printing method	Direct thermal line printing
Characters per line	64cpl (MAX)
Character size	Eng. : 9x24dots, 12x24dots Kor. : 16x24dots [24x24dots]
Resolution	203dpi, 8dots/mm
Optional Characters	Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish,Greek, Japanese, Persian, Latin9 and Others upon request.
Print width	3-inch (72mm, 576dots)
Printing speed	150mm/sec (MAX)
Dimensions (WxDxH)	169 * 88.2 * 101 mm
Weight	980g
Interface	UART(RS-232C or TTL) [Standard model]
Paper supplied	Thermal roll paper (80mm wide, 80ø), Paper thickness : 60±5㎛
Barcode supported	1-dimension : Code128, Code39, I2/5, Code93, UPC-A, UPC-E, EAN8, EAN13, CODABAR 2-dimension : PDF417, QR Code, DATA Matrix, Micro PDF417, Truncated PDF417
Driver	Microsoft Widows XP / VISTA / 7 Windows CE, Linux, Android, Blackberry
H/W Spec	MCU : 32bits RISC, FLASH : 4Mbytes, RAM : 8Mbytes
Receive buffer size	1M bytes
Input power	24VDC, Standby 60mA and MAX 3A
Option	Sliding mount assembly
Operating temperature	-10°C ~ 50°C
Storage temperature	-10°C ~ 70°C
MCBF(Mean Cycle Between failure)	Mechanical	37,000,000 lines
	Head	Approximately 50Km

Test & Measurement, Transportation, Health care, ATM, Coupon, Self service, Kiosks, Electronic voting systems.
